    Prestressed Carbon Fiber Plate Reinforcement System
      • Prestressed Carbon Fiber Plate Reinforcement System
      • Prestressed Carbon Fiber Plate Reinforcement System
      • Prestressed Carbon Fiber Plate Reinforcement System
      • Prestressed Carbon Fiber Plate Reinforcement System
    Product Details

    The traditional non-prestressed bonding process does not apply pre-stress, which is passive reinforcement. Less than 20% of its strength is reinforced. The carbon fiber plate will peel off with the concrete when the stress level is low, which will lead to the early damage of the reinforced structure, and further reduce the reinforcement effect.

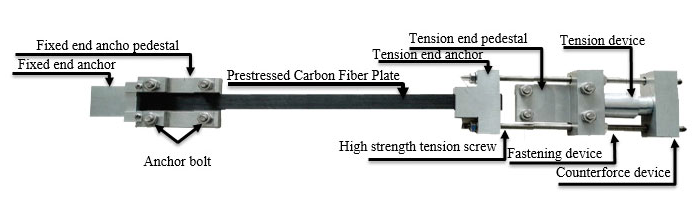

    Lica®-Prestressed Carbon Fiber Plate Reinforcement System, with a unique, reliable and permanent anchorage system, and a simple and effective tension system, is based on the high performance carbon fiber plate. Compared with the ordinary flat plate clip anchorage system, Lica system is more reliable and of larger tensile stress, more simple process, better technical and economic advantages, which enable the maximum utility of the excellent carbon fiber materials properties, It can significantly improve the reinforcement effect of engineering components

    Part

    Prestressed Carbon Fiber Plate

    Anchorage

    Epoxy adhesive

    Carbon fiber plate adhesive

    Anti ultraviolet protective adhesive

    Model

    Lica-SCFP

    Lica-MJ

    Lica-300

    Lica-131

    Lica-302

    Model of Carbon Fiber Plate

    Size of Carbon Fiber Plate

    Strength Limit(KN)

    Anchor Model

    Anchor Force(KN)

    SCFP1.4-50

    1.4mm x 50mm

    196

    MJ1.4-50-25

    250.0

    SCFP3.0-50

    3.0mm x 50mm

    420

    MJ3.0-50-45

    450.0

    SCFP1.4-100

    1.4mm x 100mm

    392

    MJ1.4-100-45

    450.0

    SCFP2.0-100

    2.0mm x 100mm

    560

    MJ2.0-100-60

    600.0

    Advantage :

    Special self-locking structure

    Anchoring efficiency>0.95

    Larger tensile stress

    Ultimate tensile strength:3400Mpa

    More simple process

    Better technical and economic

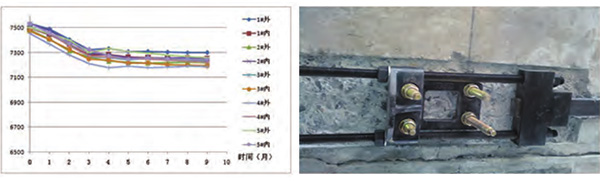

    4 million fatigue load tests

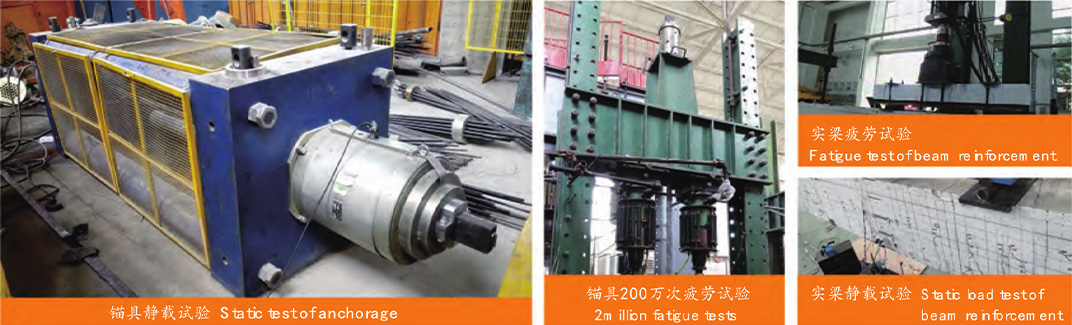

    Static load tensile failure test2 million fatigue load test

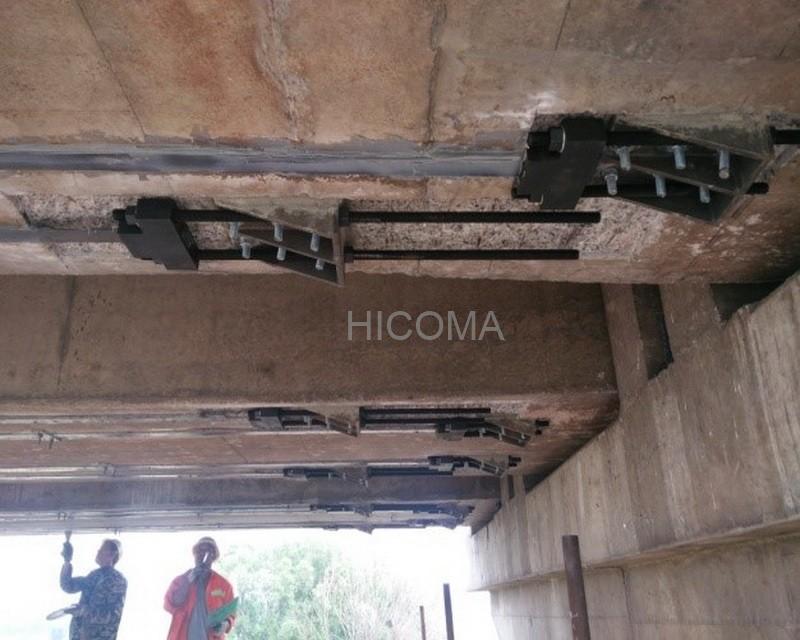

    Application cases:

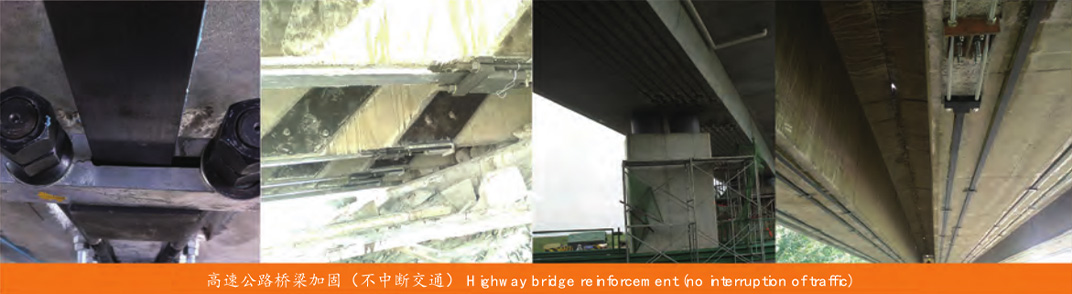

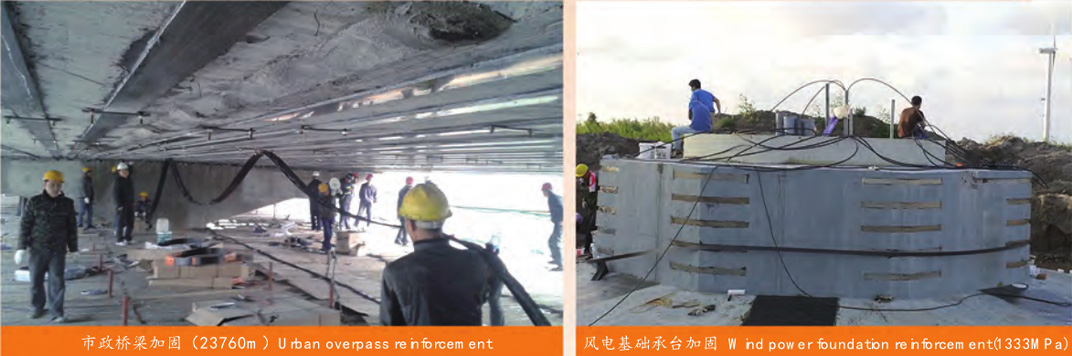

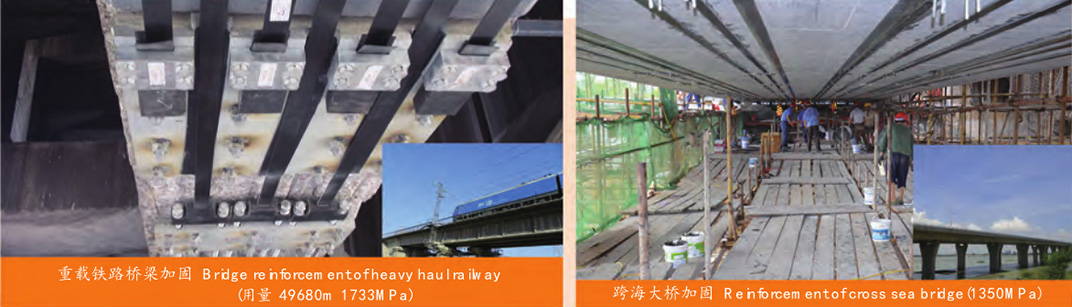

    Shuo Huang heavy load railway bridgeFen Guam high-way bridgeWind power foundation platform reinforcementXiamen Dadeng Fire emergency reinforcement bridge
